Pellets Burning Steam Generator Price

FOB Price:

US 12300-25500 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

100 Ton/Tons per Week

Port:

Any ports in China

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/P,T/T,Western Union,MoneyGram,Pellets Burning Steam Generator

Brand:

Henan Yuanda

Products Model:

DZL-T

Products Details
Company Profile

Quick Details

Brand Name: Henan Yuanda

Model Number: DZL-T

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: 1ton boile perper, 20'ft open top container. 2ton & 4ton boiler proper, 40'ft flact rack. Auxilary machines, nude or wooden box packing.
Delivery Detail: 0-30 days after down payment

Specifications

Description

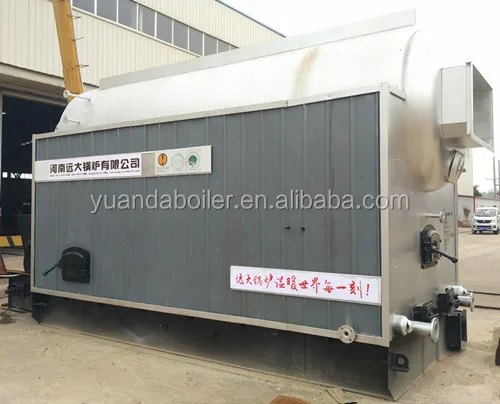

DZL single drum horizontal low pressure automatic chain grate package fire-water tube three-passes industrial steam boilers

Pellets Burning Steam Generator Price

This boiler is single drum horizontal structure, equipped with automatical chain grate, stoker, ashes extractor, water pumps, grate speed regulator, fuel conveyor. Complete boiler room working system.

Steam capacity	1t/h, 2t/h, 4t/h 1ton/h, 2ton/h, 4ton/h
Working pressure	10bar, 13bar, 16bar
Steam Temperature	184^oC, 194^oC, 204^oC
Feed water temperature	20^oC
Fuel consumption	Min. 150kg - Max. 600kg
Boiler efficiency	82% - 84%
Boiler water volume	Min. 3.15 - Max. 8.2m3
Applicable Fuels	pellets, wood pellets, biomass pellets

Hydraulic test pressure	14bar, 16.5bar, 20bar
Active grate area	Min.2.83 - Max.6.03m2
Radiation heating area	Min. 5.9 -Max. 12.6m²
Convection heating area	Min. 23.7 - 93.3m²
Economizer heating area	Min.10.56 - Max.43.2m²
Boiler proper dimension	Min.523020002980mm Max.682926203524mm
Boiler proper weight	Min.15.3 - Max.27.6ton
Pellets Burning Steam Generator Price

Detailed Images

Boiler Room Machines

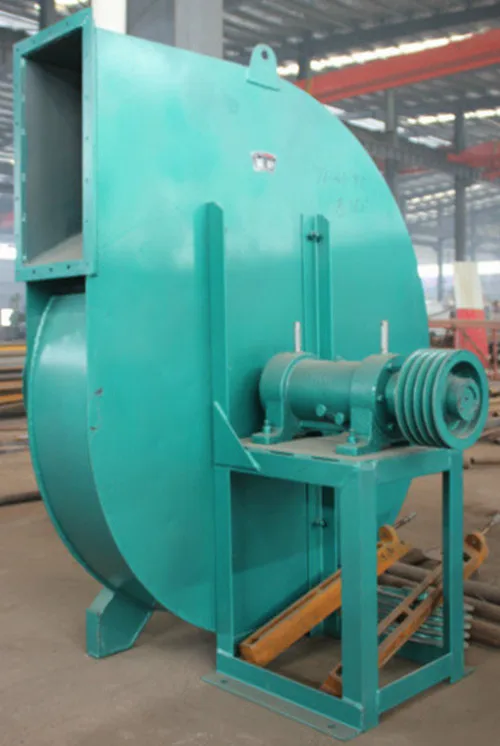

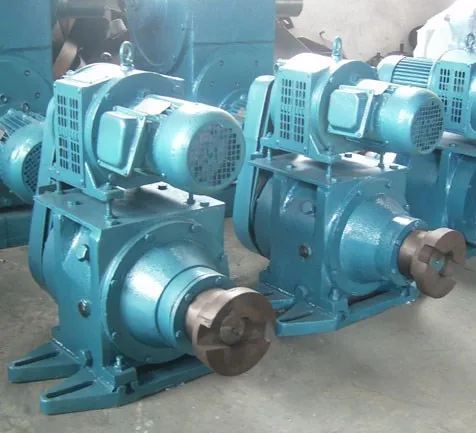

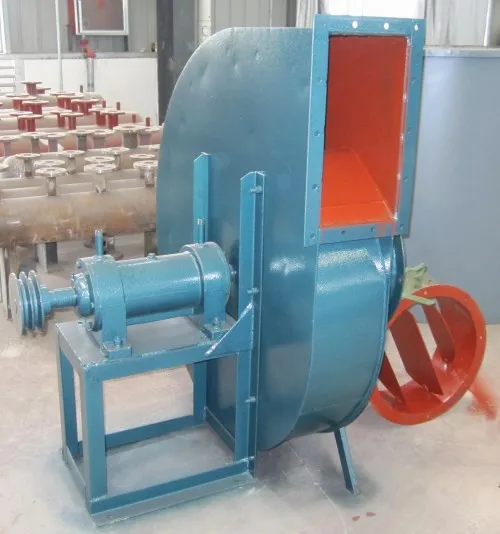

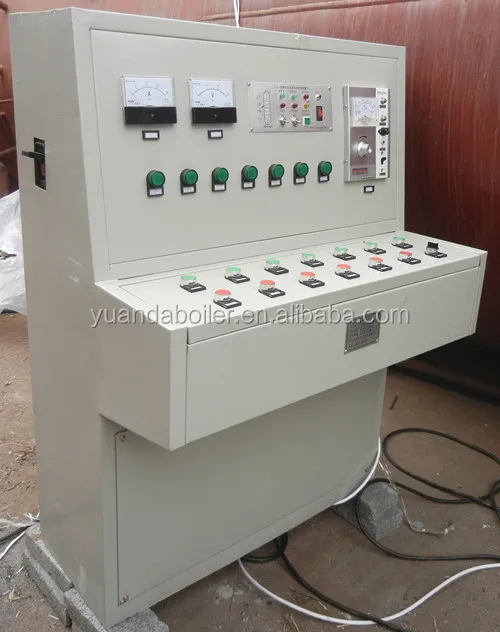

Electrical Cabinet Grate Speed Regulator Forced Fan Induced Fan

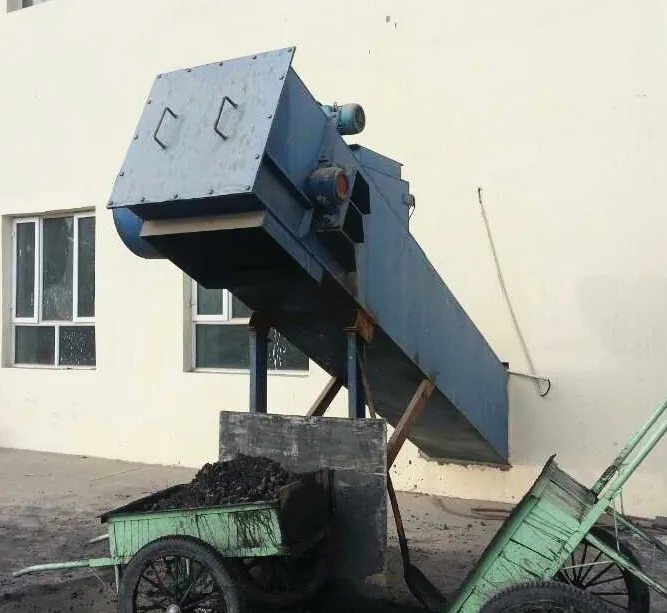

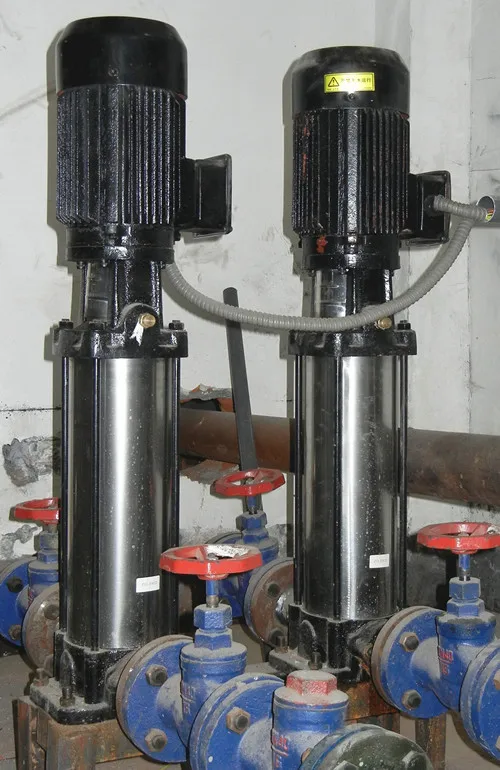

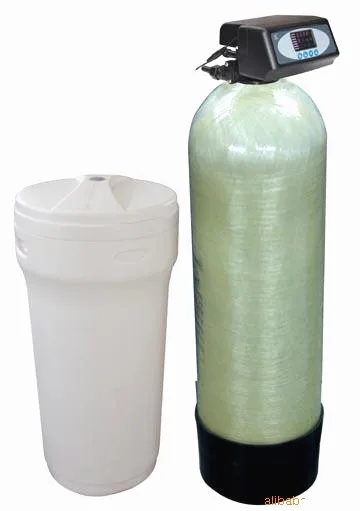

Ashes Remover Economizer Water Pump Water Softener

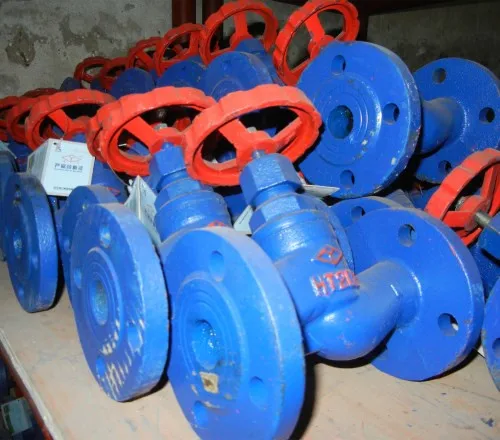

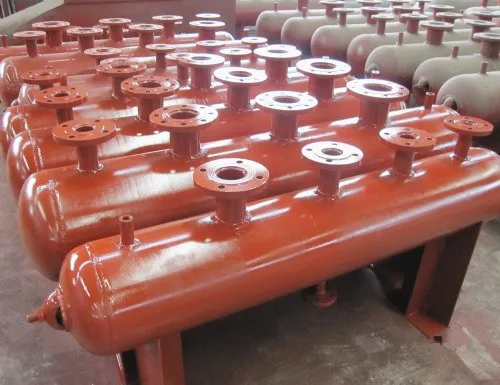

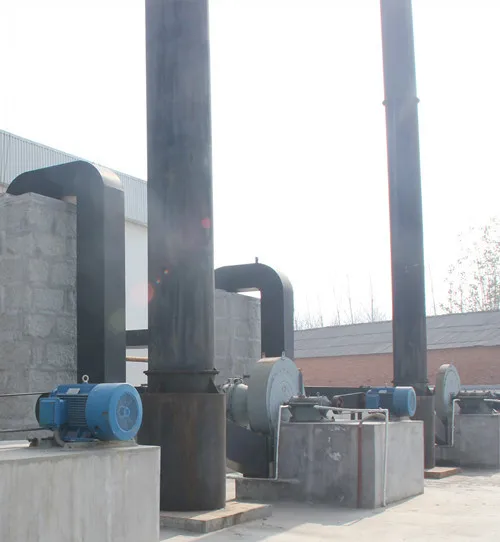

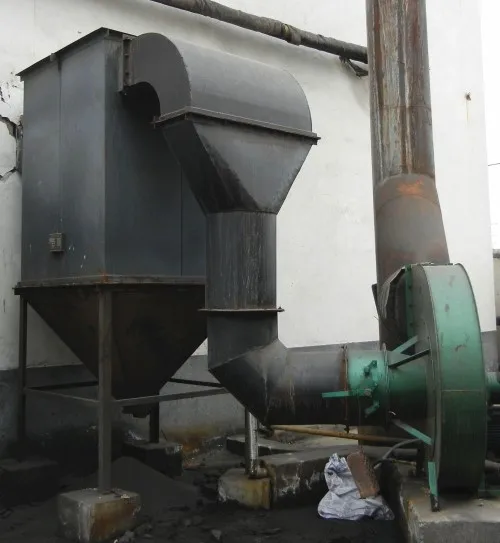

Cyclone Dust Collector Gas Flue & Chimney Steam Header Valves & Meters

Delivery

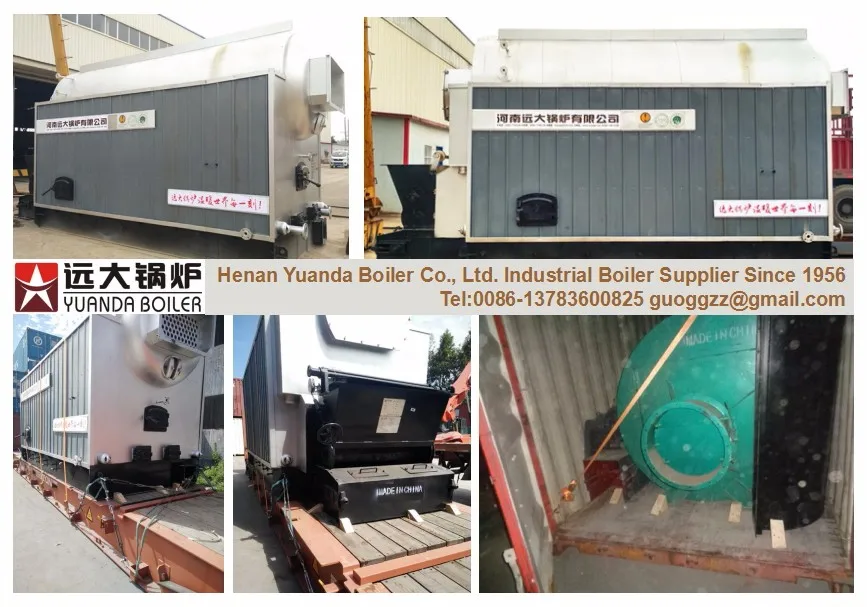

In Septemper 2016, 4ton coal steam boiler exported to Bangladesh.

Factory

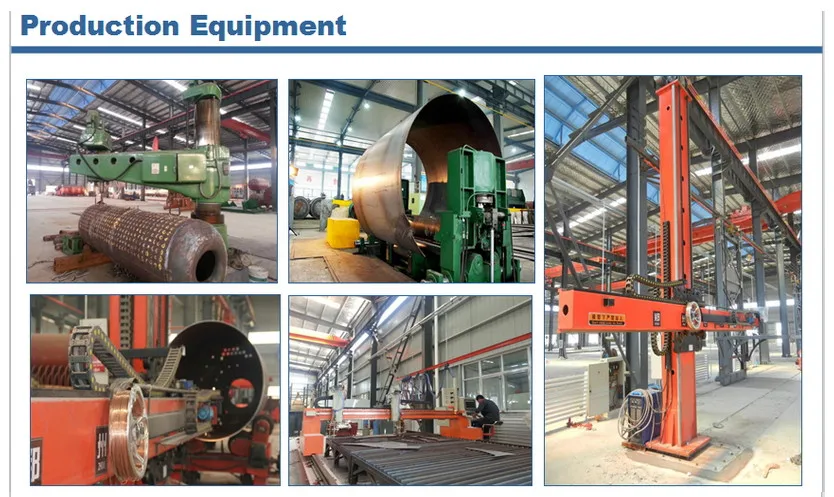

Henan Yuanda Boiler Co., Ltd., established in 1956, engages in the design, manufacture, production and installation of industrial boilers. There are cutting machines, bending machines, testing machines, welding machines, which ensure the whole process professional and precisely. Yuanda Factory locates in Zhoukou city, Henan province, the contral part of China. 1.5 hours far way from Zhengzhou airport. Welcome worldwide customers to our Factory!

Customers

Here are pictures of customers from South Africa, Ukraine, Pakistan, Kazakhstan, Vietnam, Bangladesh, etc.
