High quality air conditioning adjustable air dampers motorized damper actuator

FOB Price:

US 12.15-58.98 / Piece

Min.Order Quantity:

30 Piece/Pieces

Supply Ability:

1000 Piece/Pieces per Month

Port:

Xiamen

Place of Origin:

Fujian, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

XMZXL

Products Model:

ZXL-FF-09

Products Details
Company Profile

Quick Details

Brand Name: XMZXL

Model Number: ZXL-FF-09

Place of Origin: Fujian, China (Mainland)
Type: HVAC Systems
Material: Galvanised steel
Connection: Angle iron flange or TDF flange
Size: Any size
Thickness: Frame 1.4mm,blade 1.2mm
Actuator: AC220V or AC/DC24V
Running time: 30s(90°)
Control signal: 2-point or 3-point
Service life: 80000times
Ambient temperature: -20~+50℃
Direction of rotation: Manual regulation

Packaging & Delivery

Packaging Details: Exported cartons and wooden pallet .
Delivery Detail: Shipped in 7 days after payment

Specifications

High quality air conditioning adjustable air dampers motorized damper actuator

Product Description

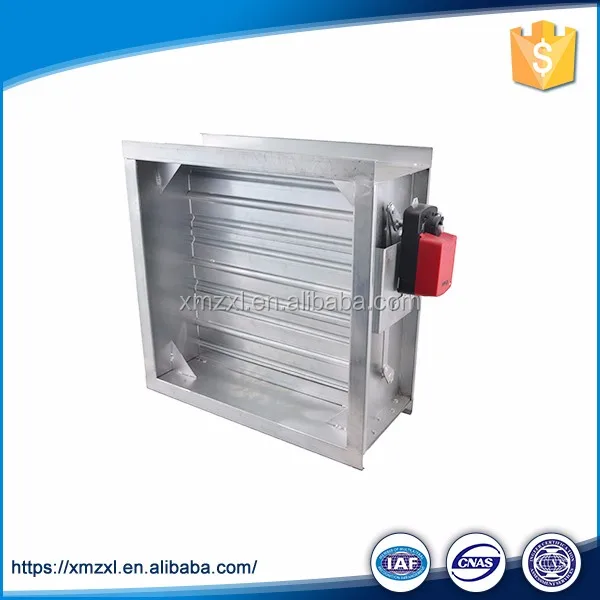

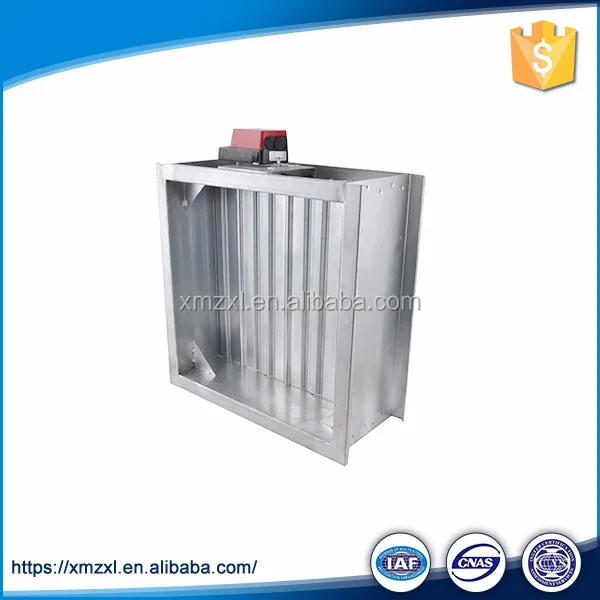

Air Volume Control Damper

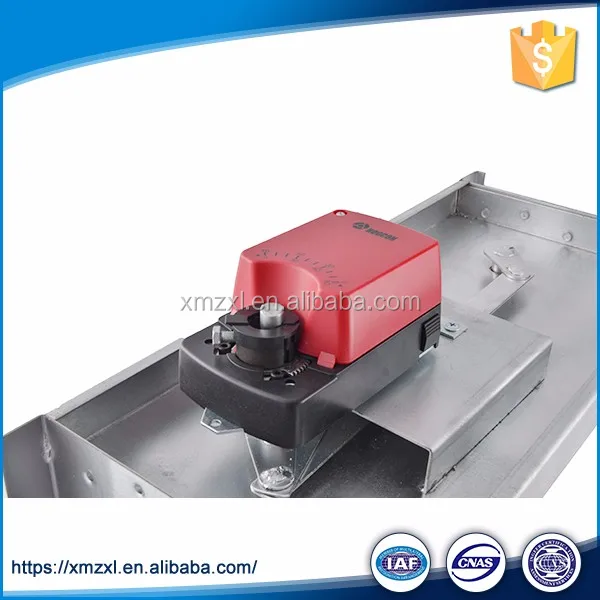

ZXL voulme control damper is designed for motorized balancing in ventilation system for volume flow and pressure. The damper actuator arm or the OM aim linkage is mounted on the shaft for motorized operation.

FEATURES:

* Galvanised Steel

* Thickness: Frame 1.4mm,blade 1.2mm

* Air Volume Control Damper

* Size: Any size

Basic information:

Type	HVAC Systems
Material	Galvanised Steel
Thickness	Frame 1.4mm,blade 1.2mm
Connection	Angle iron flane or TDF flange
Actuator	AC220V or AC/DC24V
Running time	30s(90°)
Control signal	2-point or 3-point
Service life	80000times
Ambient temperature	-20~+50℃
Ambient humidity	5%-95%RH
Torque	2,4,6,8,16,24,32,40Nm
Direction of rotation	Manual Regulation

Logistics information:

Processing time	7 days after receipt of payment
Port	Xiamen
Supply ability	1000 pcs per month
Packing deytails	Exported cartons and wooden pallet. Air Volume Control Damper are well packed .
